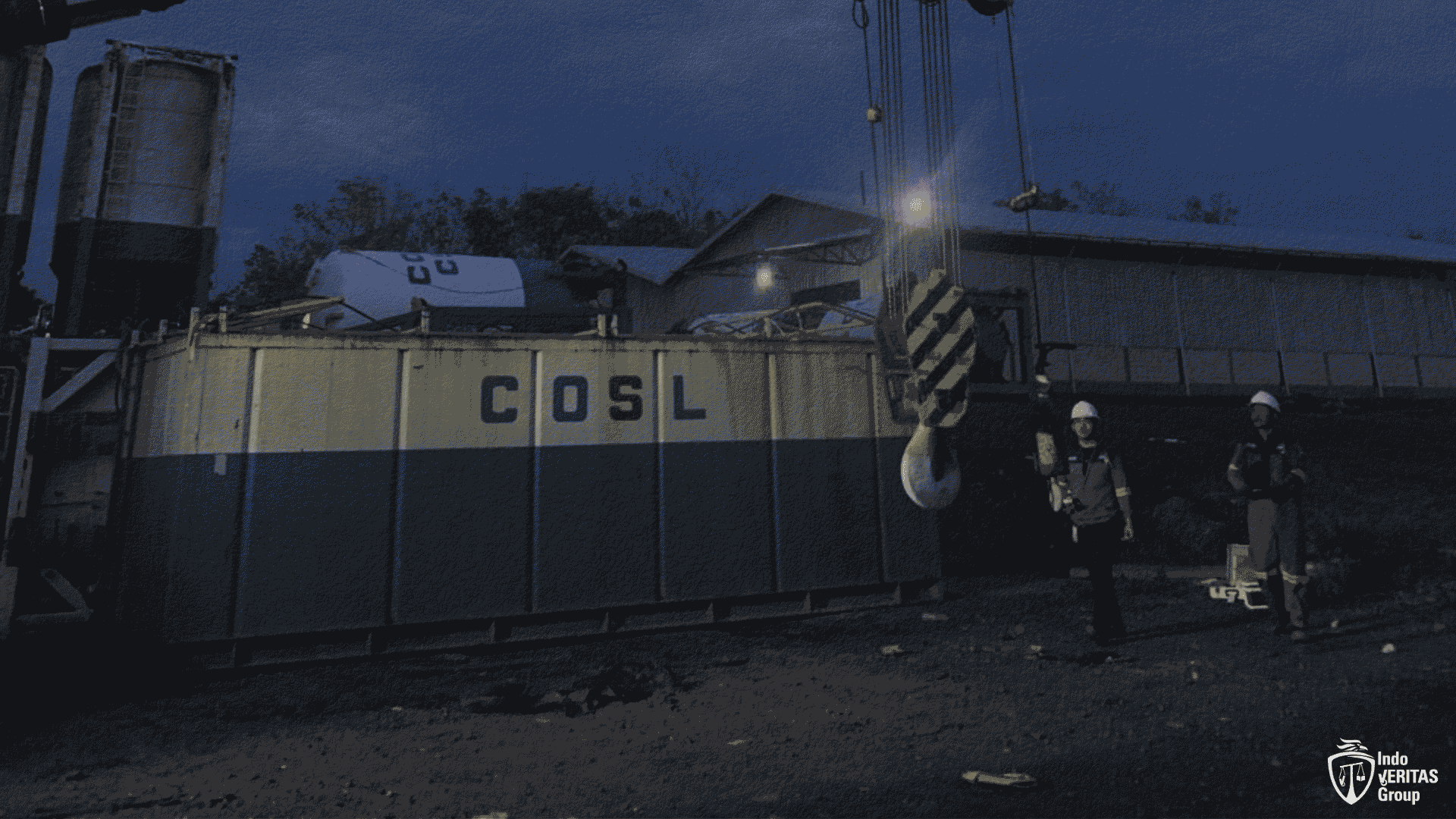

Sling & Shackle Inspection is a systematic technical examination of lifting gear to detect damage, wear, deformation, or loss of material integrity that could lead to sudden failure and dropped load incidents.
This inspection is required under international standards such as ASME B30.9 (Slings) and ASME B30.26 (Rigging Hardware) to ensure the Working Load Limit (WLL) remains safe and to prevent fatal accidents in construction, oil & gas, mining, and manufacturing industries.
Basic Principles of Sling & Shackle Inspection
Inspection consists of three main levels:
- Pre-Use Visual Inspection (daily by the rigger)
- Periodic Inspection (monthly or quarterly by a competent person)
- Thorough Examination (annually or based on risk level)
Daily Visual Check
The first and most critical step. The rigger must check the physical condition before every use. Any doubtful equipment must be immediately isolated (quarantined) and not used until further inspection.
Dimensional Inspection with Measuring Tools
Using vernier calipers, wire rope gauges, and welding gauges to detect diameter reduction, elongation, or deformation not visible to the eye. These precise measurements support objective decisions.
Tag & Identification Verification
Every sling and shackle must have a clear, permanent tag showing WLL, size, serial number, year of manufacture, and last inspection date. Missing or unreadable tags = equipment must not be used.
Sling Inspection
1. Wire Rope Sling
- Broken wires: Maximum allowable count per ASME B30.9
- Birdcaging: Strand deformation forming a cage-like gap
- Corrosion & pitting: Rust attack reducing strength
- Kinks & distortion: Permanent bends due to improper handling
2. Webbing Sling (Synthetic)
- Abrasion, cuts, tears, and fiber fraying
- Discoloration, stiffness, or melting due to heat/chemicals
- Damage to sling eyes and stitching
3. Chain Sling
- Elongation > 5% of link pitch
- Link diameter wear > 10%
- Cracks, nicks, or distortion in links
Shackle Inspection
- Pin & Thread: Worn, bent, or difficult-to-lock threads
- Body Deformation: Excessive throat opening
- Cracks & Wear: Hairline cracks in high-load areas
- Side Loading Risk: Correct shackle type for load angle
Retirement Criteria (Discard Limits)
| Component | Retirement Criteria | Standard |
|---|---|---|
| Wire Rope Sling | 5 broken wires in one strand or 10 randomly distributed | ASME B30.9 |
| Shackle & Hardware | Wear > 10% of original dimension | ASME B30.26 |
| Chain Sling | Elongation > 5% or wear > 10% | ASME B30.9 |
| Webbing Sling | Any significant cut, tear, or abrasion | ASME B30.9 |
Benefits of Routine Inspection
- Prevents potentially fatal dropped load incidents
- Ensures compliance with OSHA 1910.184, ASME, and local regulations
- Reduces operational downtime and project losses
- Extends the service life of lifting gear
- Improves auditor and client confidence
Professional Inspection Tools
- Vernier Caliper & Digital Micrometer
- Wire Rope Gauge
- Welding Gauge (Bridge Cam Gauge)
- High-intensity LED flashlight & magnifier
- Digital checklist / inspection software
Inspector Competency
Inspection must be performed by a Competent Person or certified rigger. Deep knowledge of materials, ASME standards, and field experience are essential for accurate assessment.
Sling & Shackle Inspection Services by Indo Veritas Group
Indo Veritas Group provides professional, independent lifting gear inspection services in accordance with international standards.
- Certified inspectors with heavy industry experience
- Procedures based on ASME B30.9, B30.26 & OSHA
- Use of calibrated measuring tools
- Comprehensive reports with photos, recommendations, and status
- Integration with your company’s lifting management program
Conclusion: Sling & shackle inspection is not a formality. It is the primary defense line against dropped load accidents that can cause serious injuries and major losses. Perform inspections consistently and professionally.
Contact the Indo Veritas Group team today for a comprehensive and reliable lifting gear inspection program.
